Now there are various terms related to root locus technique that we will use frequently in this article.

Root locus calculator with steps. The analysis of the variation of the roots by system arguments is the root locus. Once the s-plane plot is formed. To know if the system is absolutely stable and the degree of stability.

Features data entry as either polynomials or. In turn these locations provide indirect information on the time and frequency responses. You can enter a numerator and denominator for G sH s ie the loop gain and the program will guide you through the steps to develop a sketch of the root locus by hand.

With the help of root locus we can easily predict the performance of the whole system. Root Locus Analysis and Design K. We exploit the properties of Root-Locus to do a rough sketch.

For math science nutrition history geography engineering mathematics linguistics sports finance music WolframAlpha brings. Free Pre-Algebra Algebra Trigonometry Calculus Geometry Statistics and Chemistry calculators step-by-step. You can use rlocus to plot the root locus diagram of any of the following negative.

Transfer-function pole locations determine performance characteristics such as rise and settling time overshoot. I have recently summer 2020 developed this page to help student learn how to sketch the root locus by hand. To use this calculator Insert your math expression on the textarea provided.

Find roots of any function step-by-step. Get step-by-step solutions from expert tutors as fast as 15-30 minutes. We have also seen that feedback can change pole locations in the system transfer function and therefore performance is changed.

In the Root Locus Editor right-click the plot area and select Properties. The root locus of an open loop transfer function can be calculated based on the s. It can handle continuous and discrete-time systems with up to 20 poles 20 zeros including systems with negative gain positive feedback and those with time delay in the loop.

Root locus plot for transfer function s2s33s25s1 Natural Language. The root locus returns the closed-loop pole trajectories as a function of the feedback gain k assuming negative feedback. To predict a systems performance by an analysis that does NOT require the actual solution of the differential equations.

The analysis to indicate readily the manner or method by which this system must be. We know that the root locus branches start at the open loop poles and end at open loop zeros. Root loci are used to study the effects of varying feedback gains on closed-loop pole locations.

Whether the roots are real or complex the calculator is able show a step by step solution. The ratio of the output and input of the system is called as the transfer function. K 3 7.

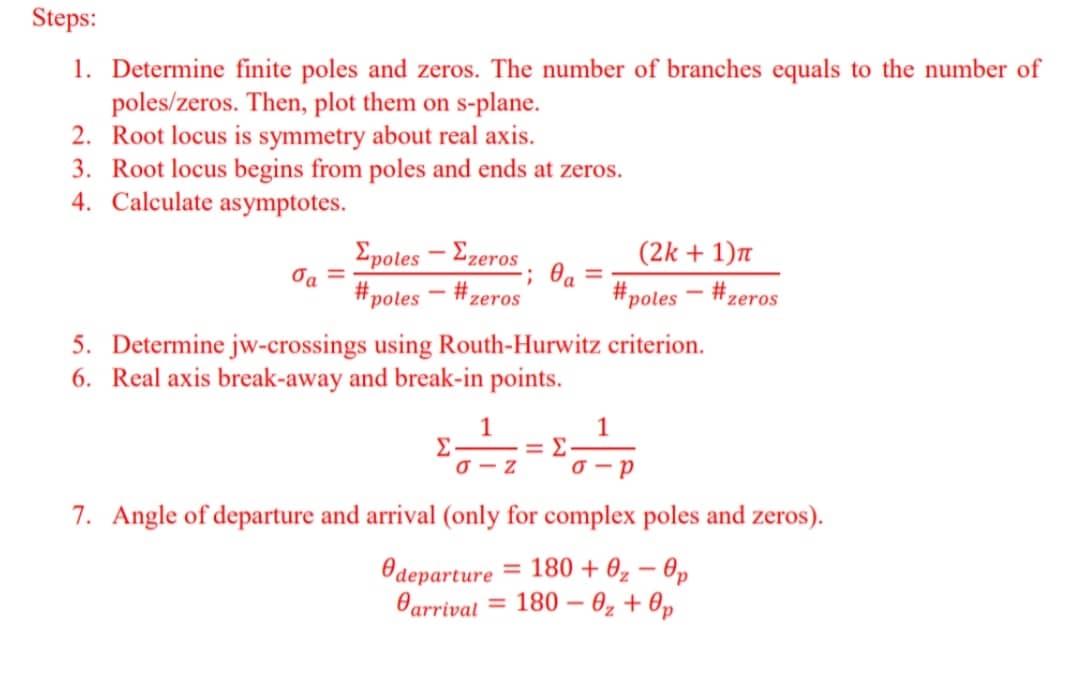

Compilation of Root Locus Pages This document comprises the bulk of the text describing the root locus and is formatted slightly differently to facilitate printing. To make the root locus diagram easier to read zoom in. General Steps to Draw Root Locus.

Root locus technique in control system is easy to implement as compared to other methods. Root locus provides the better way to indicate the parameters. Therefore lets explore the properties of root locus.

In the Property Editor dialog box on the Limits tab specify Real Axis and Imaginary Axis limits from -500 to 500. Follow these rules for constructing a root locus. On getting the number of poles and zeros depending on the rule the total number of branches is determined.

Extended Keyboard Examples Upload Random Compute answers using Wolframs breakthrough technology knowledgebase relied on by millions of students professionals. The online roots calculator is simple to use. Furthermore the calculator can be used to find roots of varied problems.

Root Locus ELEC304-Alper Erdogan 1 4 Drawing the Root Locus How do we draw root locus for more complex systems and without calculating poles. Y x x p 0 K. RootLocs is a FREE application for Mac and PC that plots root locus diagrams of systems that can be represented by single-input-single-output SISO feedback loops.

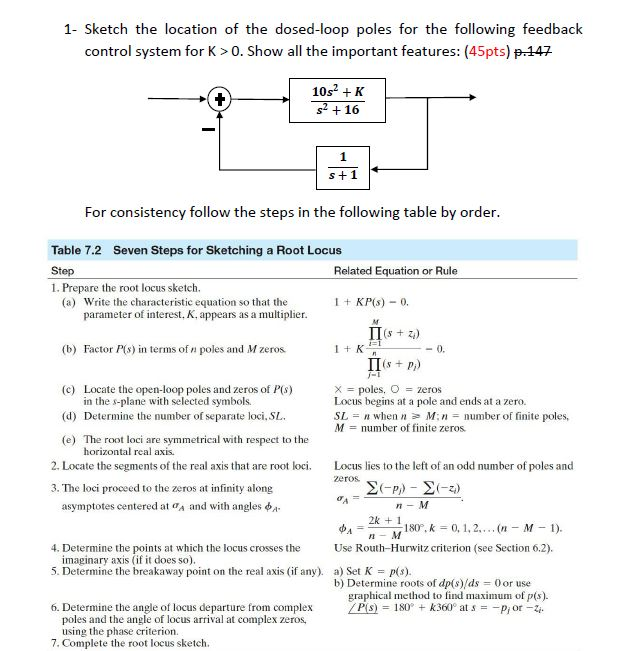

Rule 1 Locate the open loop poles and zeros in the s plane. Rule 2 Find the number of root locus branches. Now the poles-zero plot must be drawn.

Firstly from the given transfer function of the system the characteristic equation must be written through which the number of open loop poles and zeros must be determined.
